CENTURY 850

CENTURY 850 Gold

Fully Modular Gold Certified Power Supply


80 plus Gold certified, with 91% efficiency or higher under typical loads
Fully modular to reduce clutter and improve airflow
100% high quality Japanese 105°C/221°F capacitors, full-
bridge LLC resonant converter and DC-DC technology
Fluid Dynamic Bearing premium fan enhanced quiet operation and increased lifespan
Heavy-duty protections, including OCP, OVP, UVP, OPP, SCP, and OTP
5 year limited Warranty and exceptional Montech Customer Support



 POWER UP WITHOUT ANY NOISE

The Century series brings a premium power supply unit in 550, 650, 850 wattage.
It offers 80 Plus Gold efficiency rating, full modular cables, premium FDB fan, 100% Japanese high-quality capacitors.

And it features superior full bridge LLC resonant converter together with DC-DC circuitry, put this product on the mountain top for gold power supply.



CENTURY 850

HIGH EFFICIENCY AND LOWER OPERATING COSTS

Century series is certified 80 PLUS® Gold, it can effectively save energy consumption and guaranties a minimum of 90 % efficiency at 50% load, producing less heat generation. Also, the series has been optimized with all generations of Intel's processors to maximize energy saving.

CENTURY 850

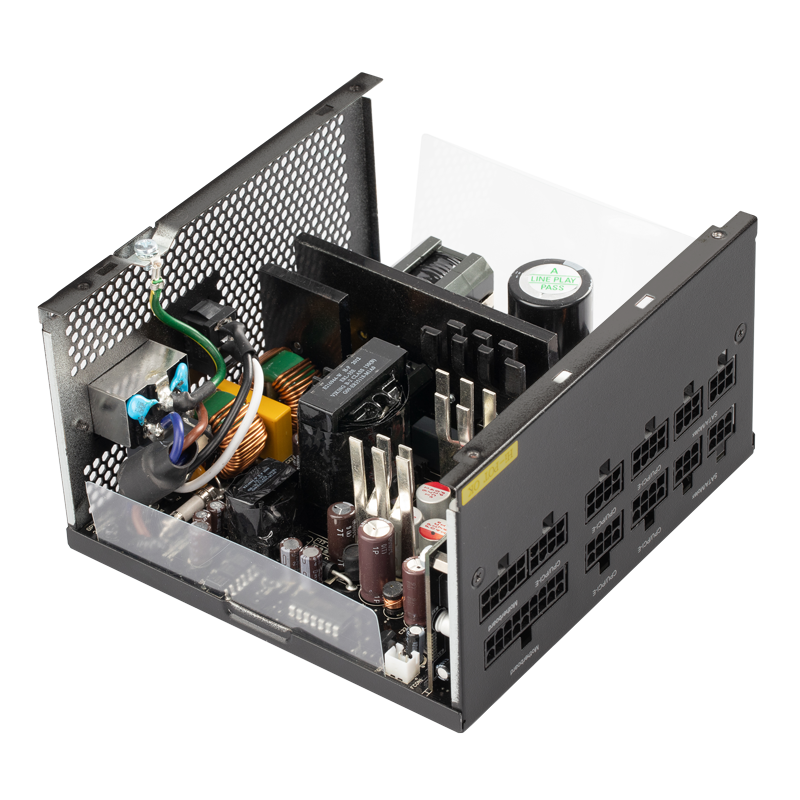

MODERN CIRCUIT LAYOUT DELIVERS SUPERIOR PERFORMANCE

Century series uses a full bridge LLC resonant converter framework together with DC-DC circuity, plus 100% Japanese capacitors and all high- quality components.
Making the Century Series power supply reliable for safety and stable voltage outputs, better performance and higher efficiency.

CENTURY 850

DURABLE AND SECURE

High Quality Components

Century series adopts 100% Japanese industrial level electronic capacitors for high durability, also achieve tight voltage and low ripple noise to enhance performance.
Moreover, it’s durable in high temperature and high pressure, therefore can effectively increase the lifespan of computer components.

CENTURY 850

SILENT OPERATION AND LONGER LIFESPAN

The advantage of using Fluid Dynamic Bearing (FDB) in the fan is to enhance the impact absorbance effects of oil. It generates less noise and heat than most of the other bearing. And, it can effectively reduce friction and vibration due to the lubrication of the bearing surface. Therefore, more reliable performance and considerably longer lifespan.

CENTURY 850

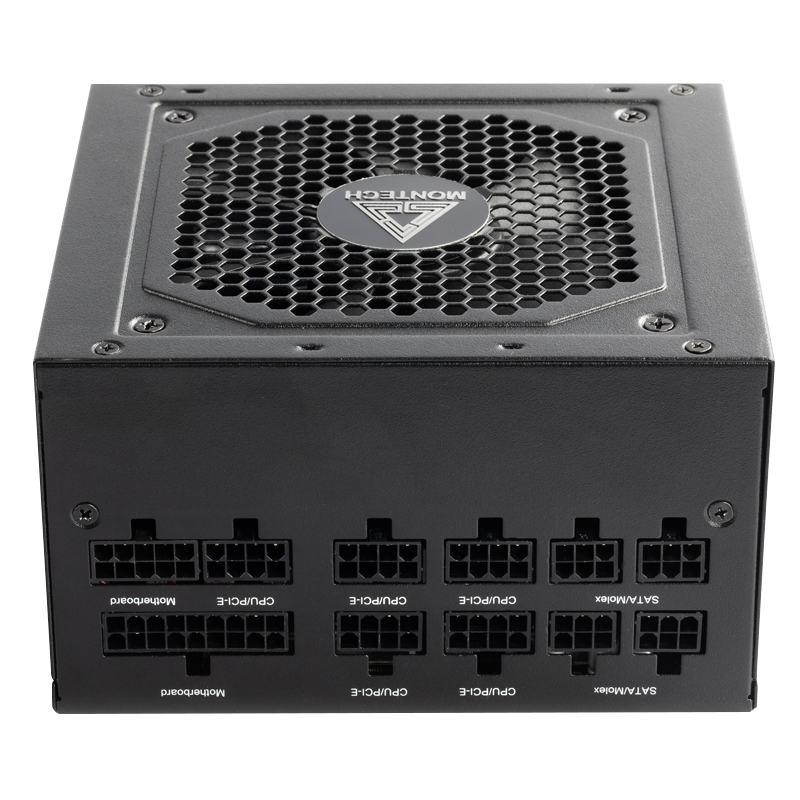

USER FRIENDLY CABLING

Fully modular cable set allows users to only attach the cables they need, reducing cable clutter and increasing airflow.

CENTURY 850

Cables

The modular cables are longer than normal power supply, makes the cable management even easier.

M/B 20+4 Pin

1

CPU 4+4 Pin

2

PCIE 6+2 Pin

6

SATA

10

Molex 4Pin

3

FDD 1
HARDWARE PROTECTION

OCP
Over Current Protection(+5V&+3.3V)

OVP
Over Voltage Protection

UVP
Under Voltage Protection

OPP
Over Power Protection

SCP
Short Circuit Protection

OTP
Over Temperature Protection

5 year warranty

The century series offers 5 year warranty. This shows our confidence and the quality of this power supply.

"Warranty service doesn't extend to power supply used for crypto currency mining."

CENTURY 850

Each Montech Power Supply goes through strenuous quality testing on the highest end equipment before they are shipped out to you.

Specifications

Product Name

CENTURY 850

ATX Version

ATX12V

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240Vac

Input Current

12A

Input Frequency

47-63Hz

Dimensions (L*B*H)

140*150*86mm

Fan Size

120mm ( FDB Fan )

Hold Up Time

10msec (minimum) at 80% of full load at 230Vac input.

Efficiency

90% Typically

MTBF

>100,000 Hours

Operating Temperature

0-45°C

Protections

OCP/OVP/UVP/OPP/SCP/OTP

Regulatory

cTUVus / TUV / CB / CE / RoHS / FCC

Connectors

M/B 20+4Pin

1

CPU 4+4Pin

2

PCIE 6+2

6

SATA

10

Molex 4Pin

3

FDD

1





AC Input

100-240Vac 47-63Hz 12.0A

DC Output

+3.3V

+5V

12V

-12V

+5VSB

Max. Output Current

20A

20A

70.5A

0.3A

2.5A

Max. Output Power

110W

846W

3.6W

12.5W

Total POWER

850W
